OEM peristaltic pump WP1200
The large peristaltic pump
A new generation of WELCO's peristaltic pump "WP1200" is created with world qualified features of WP1000; high performance and functional elegance. WP1200 archieves large flow amount keeping with well known "Tool-free design". WELCO continues to aim for higher goals.
Super engineering plastics, having excellent corrosion resistance, are used for the main pump parts and enable the pumps to be used with strong acids, strong alkalis, and chemical solutions that erode general-purpose plastics. The heat resistance is also excellent, use in various environments can be supported. The chemical resistance is not guaranteed for all kinds of solutions. Please ask availability before using.
Free mounting configuration

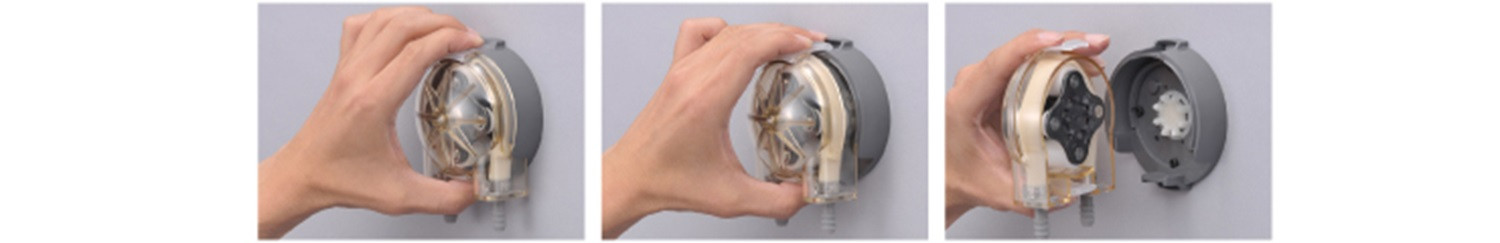

As the cassettes can be mounted and removed manually without using tools, maintenance such as tube replacement can also be performed speedily.
Optional panel
The panel is available as an option.
General specifications
| Peristaltic pump |
WP1200 |
| Liquid temperature range
|
5°- 50° C (41°- 122°F)
|
| Environment temperature range
|
0°- 50° C (32° - 122°F) (Note: Freezing must be prevented.)
|
| Ambient humidity range
|
20% - 80% RH (Note: Condensation must be prevented.)
|
| Recommended installation height
|
1.5 m (4.9 ft.) max. (Water suction)
|
| Certifications & Approvals
|
 |
Brush motor
| Motor code
|
AA
|
BA
|
| Rated voltage
|
24 V DC
|
12 V DC
|
| RPM (load: 400mNm)
|
105 - 230 min-1 (12 V - 24 V)
|
105 - 230 min-1 (6 V - 12 V)
|
| Voltage range
|
12 V - 24 V
|
6 V - 12 V
|
| Power consumption
|
1,0 A
|
2,0 A
|
| Direction of rotation
|
clockwise and anti-clockwise rotation
|
|
| Lifetime
|
approx.: 1'000 h
|
|
| Operating mode
|
max. 5 minutes continuous operating time. Not suitable for continuous operation.
|
|
Brushless motor
|
Motor Code |
C |
|
Configuration |
1:18 |
|
Operation Voltage |
24V DC |
|
Rated RPM |
230 rpm |
|
Rated current |
1A |
|
Rotation direction |
CW, CCW |
|
Max. Input |
11,5 W |
|
Winding Resistance |
1.02 Ω / 2 Phase |
|
Winding Inductance |
1.76mH at 1kHz |
|
Discharge Pressure |
max. 1,0 bar |
|
Life |
Benchmark: 5'000 h |
|
Continuous operation |
✔ |
Tube material and sizes
| Tube inner diameter
|
Ø 7,9mm |
Ø 8,0mm |
|
| Tube type
|
Code |
|
|
| PHARMED BPT
|
P |
- |
✔ |
| NORPRENE A-60-G
|
N |
✔ |
- |
| NORPRENE A-60-F
|
NF |
✔ |
- |
Flow amount per rotation
| Tube inner diameter
|
Ø 7,9mm |
Ø 8,0mm |
| Tube type
|
N, NF |
P |
| Wall thickness
|
2,38 mm |
2,0 mm |
| Flow amount per rotation
|
5,9 ml |
5,25 ml |
Color variation
Tube fitting type
