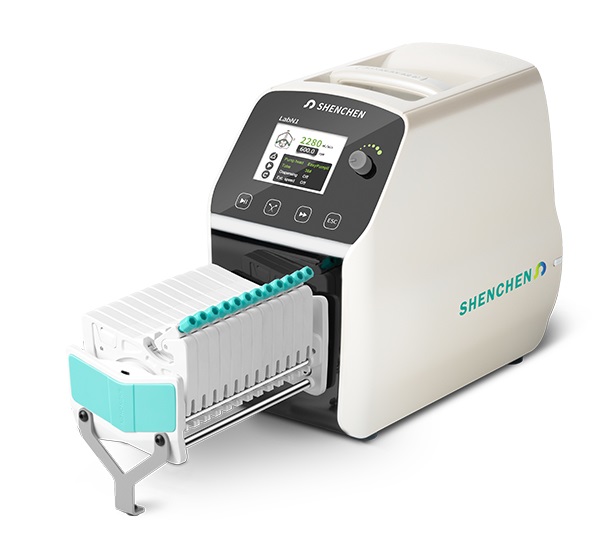

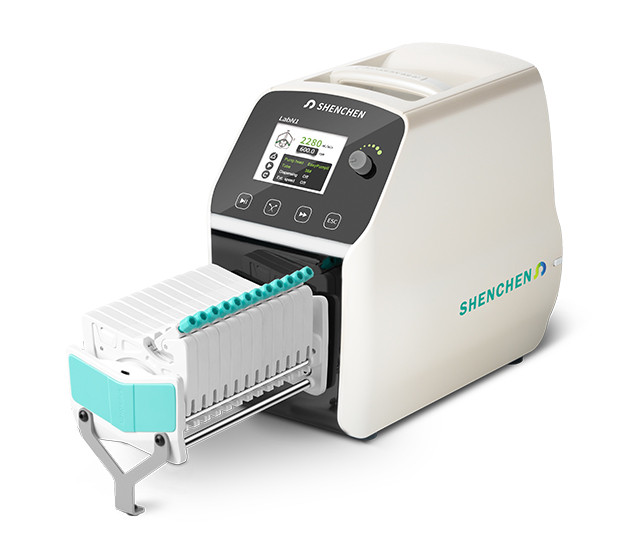

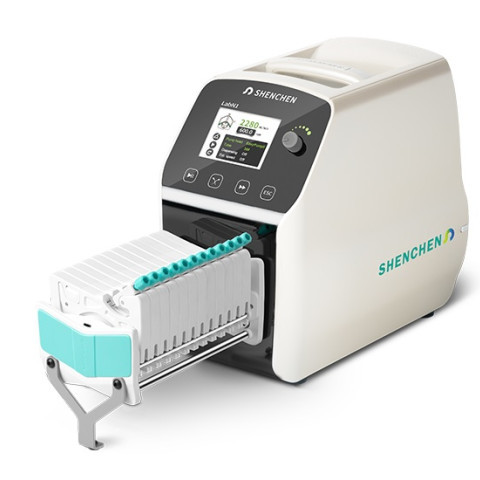

The LabN1 multi-channel peristaltic pump is a compact and easy-to-operate housing peristaltic pump.
The LabN1 multi-channel peristaltic pump is ideally suited for continuous applications of very small quantities of liquid. The pump has a compact design, is made of ABS plastic housing and is antistatic. The tubing sections can be easily exchanged without tools. The pump head is available from 1 to 12 channels. Typical applications are e.g. test series in a laboratory, as continuous metering in various processes, etc.
Properties
- Laboratory peristaltic pump with the AMC multi-channel pump head.
- Flow rate 0.005 ml/min to 65 ml/min
- ABS plastic housing with UV spray coating
- 3.2-inch LCD display
- Communication interface: RS232, RS485 (optional)
- Supports MODBUS communication protocol
- Super quiet drive setting
- Low vibration and low noise
- Protection class: IP31
- 2 years warranty
|
Dispensing pump LabN |
|
|
Flow rate range |
0,0002 – 65 ml/min |
|
Speed range |
0.1 – 600 rpm (LabN6) 0.1 - 350 rpm (LabN3) 0.1 - 150 rpm (LabN1) |
|
Speed resolution |
0.1 U/min |
|
Flow rate accuracy |
+/- 1% |
|
Display |
3.2″ LCD Display |
|
Control method |
Touch screen and mechanical keypad |
|
Back suction angle |
0 – 360° |
|
Power supply |
AC 230V±10% 50Hz |
|
Start/Stop |
Passive switch signal, such as foot pedal switch |
|
Communication interface |
RS232 (Optional: RS485) |
|
Condition temperature |
0 – 40 °C |
|
Relative humidity |
< 80% |
|
IP rate |
IP31 |
|
Weight |
4,4 kg |

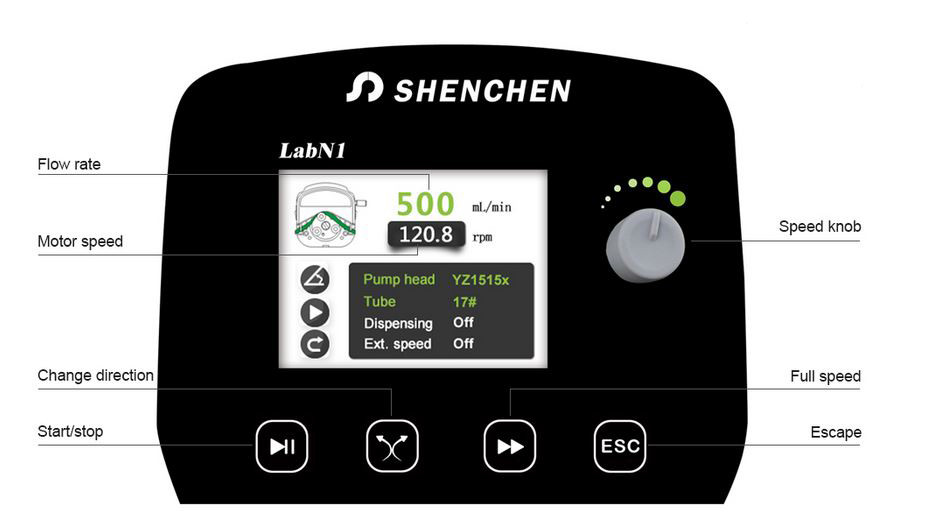

Display

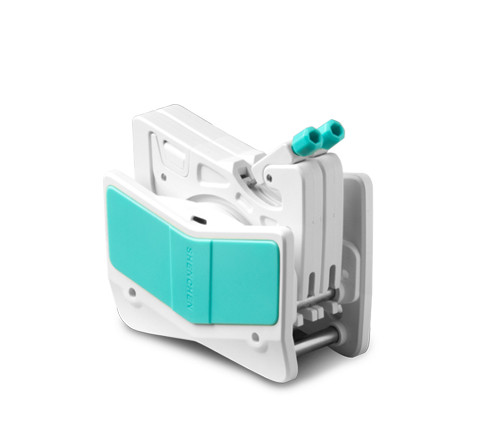

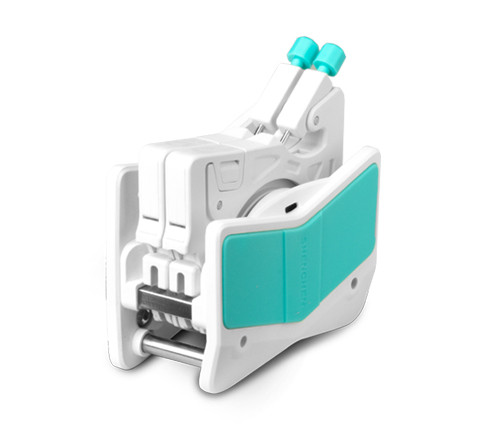

Multi-channel pump head AMC (2 to 12 channels)
Flow rate range
|
Model |
Pump head |
RPM
|
Hose sizes
|
Flow rate
|
|
Lab N1 |
AMC Series |
0.1 - 150 |
ø0.13 - ø3.0 |
0.0002 - 65 |
|
Lab N3 |
AMC Series |
0.1 - 350 |
ø0.13 - ø3.0 |
0.0002 - 65 |
|
Lab N6 |
AMC Series |
0.1 - 600 |
ø0.13 - ø3.0 |
0.0002 - 65 |

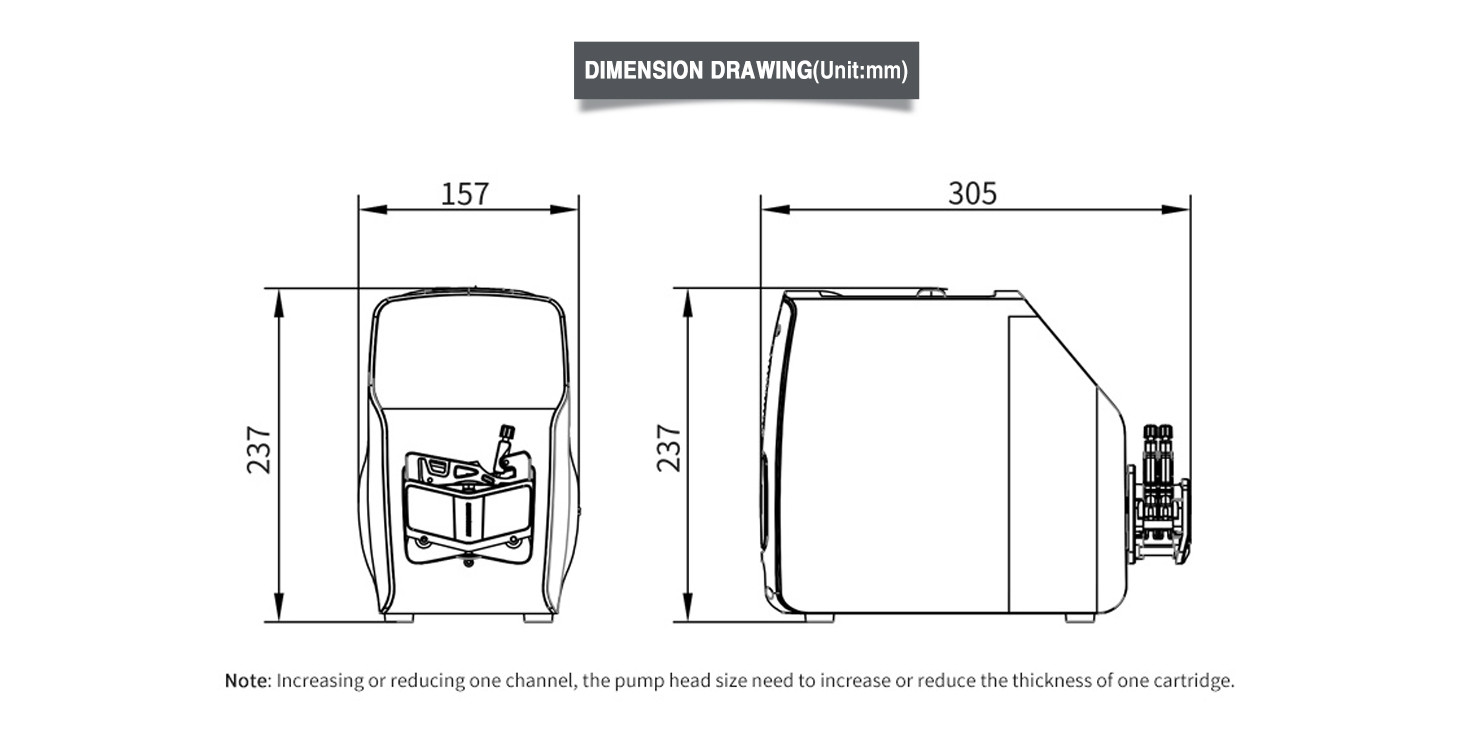

All dimensions are in mm
Scope of delivery:
- Power supply unit
- Operating instructions
- Tube holder depending on pump head
.
Optional available:
- Foot pedal
- Filling stand
- Filling needles
- One-way valve
- Tubes
