A universally applicable process peristaltic pump for continuous tubing.
The LabV process pump for hose elements is ideally suited for integration into the industrial environment. A change of tubing takes less than one minute and a wide range of different tubing materials can be used. The ABS plastic housing has a UV protective coating. The pump is operated via the 4.3" colour display and the settings are made via an intuitive user interface with just a few key sequences.
.
Properties of LabS laboratory pump:
- Delivery rate from 0.007 ml/min to 2.28 l/min
- Protection class: IP31
- Supports MODBUS communication protocol
- Pump weight: 4,4 kg
- 3 years warranty
|
Dispensing pump LabV |
|
|
Flow rate range |
0,007 – 2’280 ml/min |
|
Speed range |
1 – 600 rpm (LabV6) 1 - 350 rpm (LabV3) 1 - 150 rpm (LabV1) |
|
Speed resolution |
0.01 rpm |
|
Flow rate resolution |
0.01 µ |
|
Outlet pressure |
0.1 – 0.27 Mpa |
|
Flow rate accuracy |
+/- 1% |
|
Motor type |
Stepper motor |
|
Display |
Industrial grade 4.3″ LCD color display |
|
Control method |
Touch screen and mechanical keypad |
|
Keypad lifetime |
300'000 times |
|
Back suction angle |
0 – 360° |
|
Power supply |
AC 220V±10% 50Hz/60Hz (Standard) AC 110V±10% 50Hz/60Hz (Optional) |
|
Start/Stop |
Passive switch signal, such as foot pedal switch |
|
Communication interface |
RS232/RS485 |
|
Power consumption |
< 50W |
|
Condition temperature |
0 – 40 °C |
|
Relative humidity |
< 80% |
|
IP rate |
IP31 |
|
Weight |
4,4 kg |

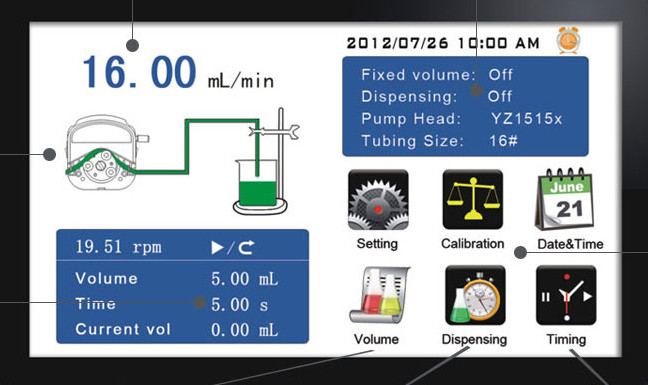

Display

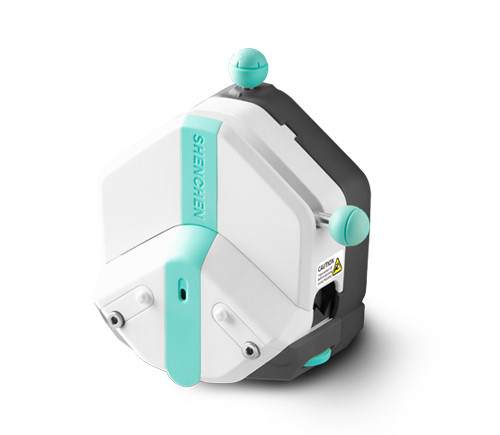

Pump head
Flow Rate Range
|
Model |
Pump head |
Speed (rpm) |
Tubing size
|
Flow rate range
|
|
LabV1 |
YZ 15 |
0.1-150 rpm |
0,8 / 1,6 / 2,4 / 3,1 / 4,8 / 6,4 / 7,9 |
0.007 – 570 |
|
YZ 25 |
0.1-150 rpm |
4,8 / 6,4 |
0.17 – 435 |
|
|
LabV3 |
YZ 15 |
0.1-350 rpm |
0,8 / 1,6 / 2,4 / 3,1 / 4,8 / 6,4 / 7,9 |
0.007 – 1’330 |
|
YZ 25 |
0.1-350 rpm |
4,8 / 6,4 |
0.17 – 1’015 |
|
|
LabV6 |
YZ 15 |
0.1-600 rpm |
0,8 / 1,6 / 2,4 / 3,1 / 4,8 / 6,4 / 7,9 |
0.007 – 2’280 |
|
YZ 25 |
0.1-600 rpm |
4,8 / 6,4 |
0.17 – 1’740 |
Standard accessories
- Power Line
- Manual
- Silicone Tubing
Optional Accessories
- Foot pedal switch
- Filling nozzle
- One-way Valve
- Support stand
