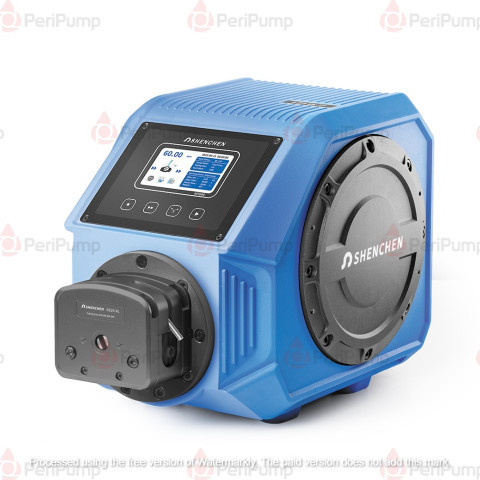

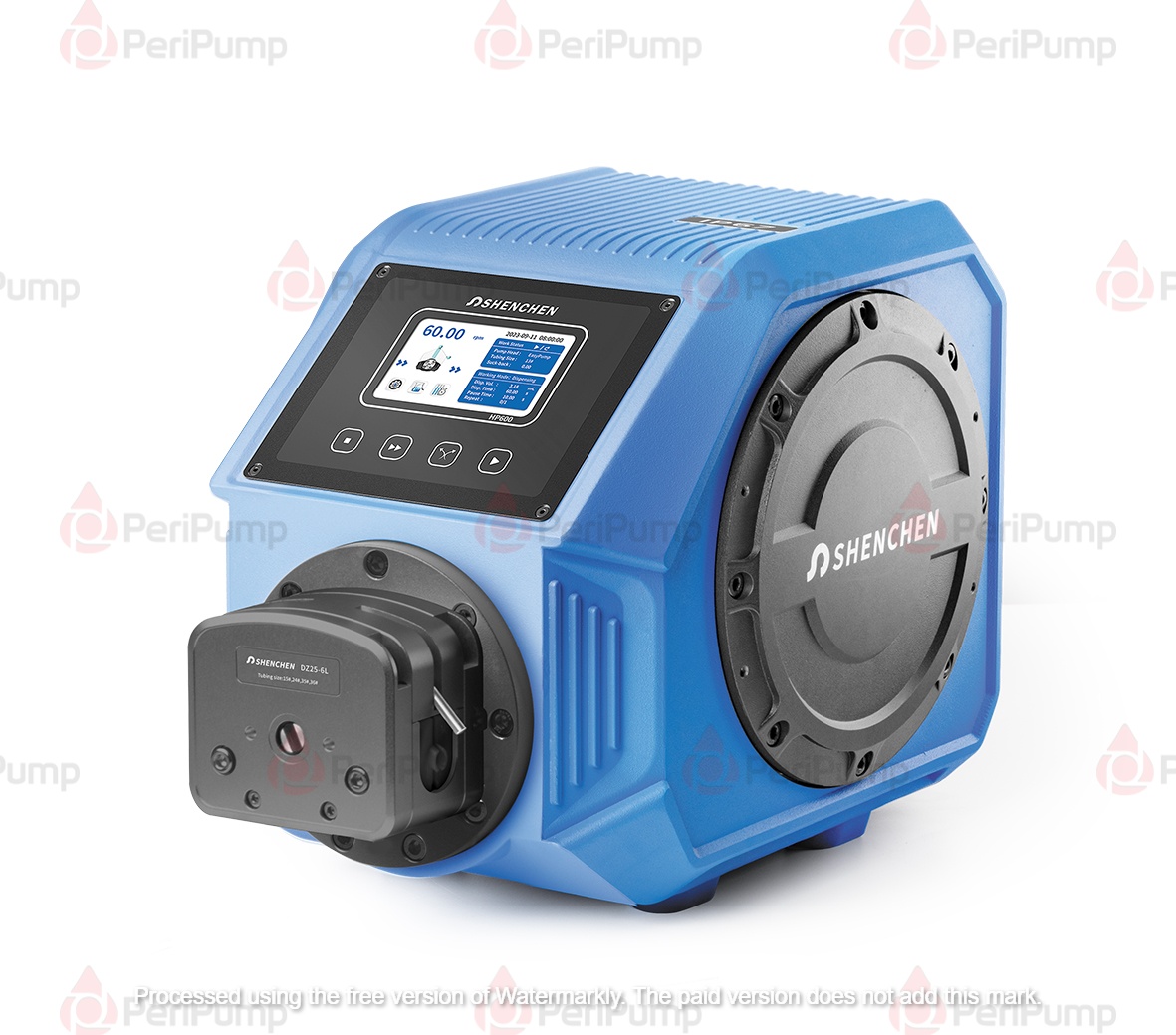

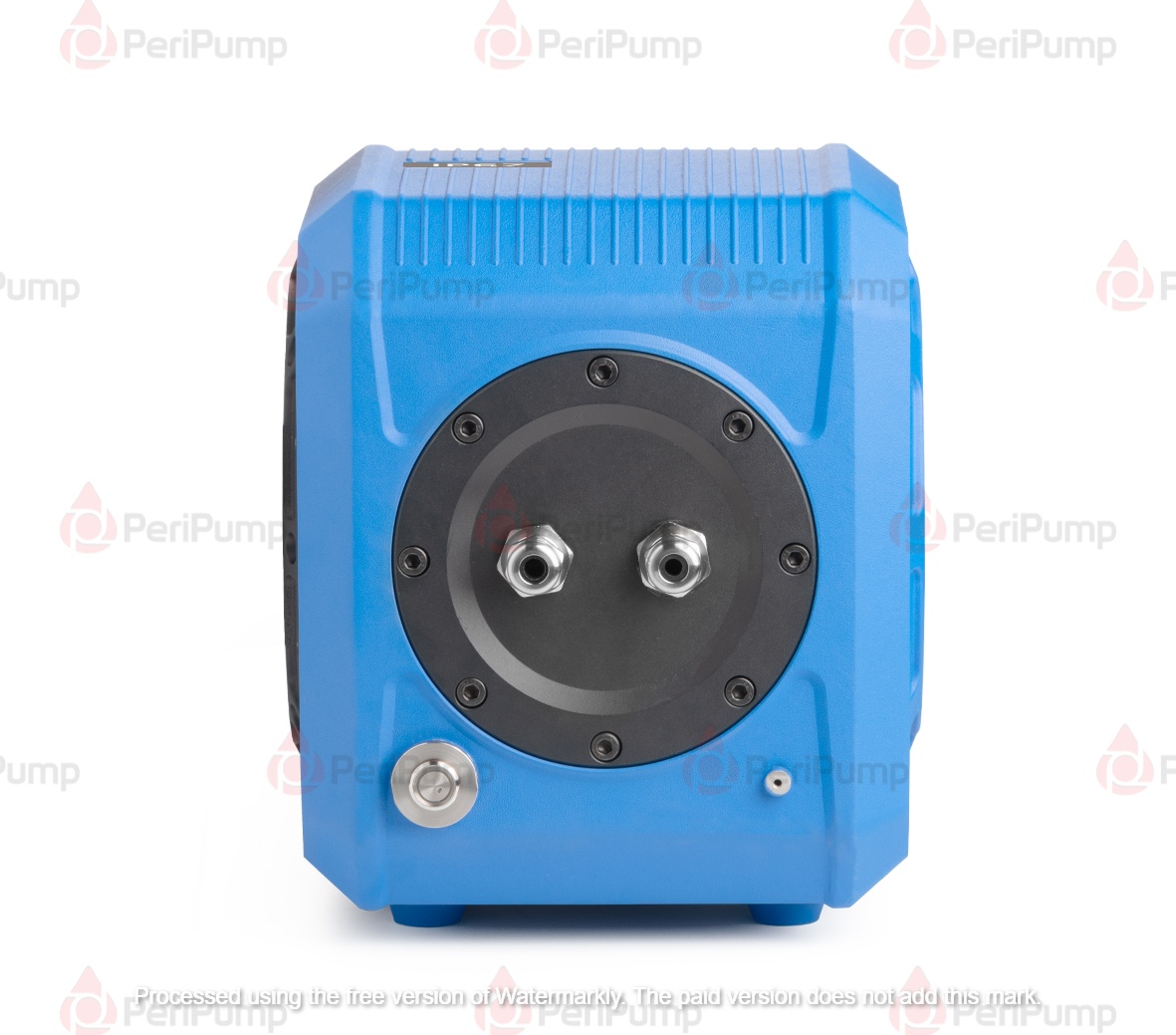

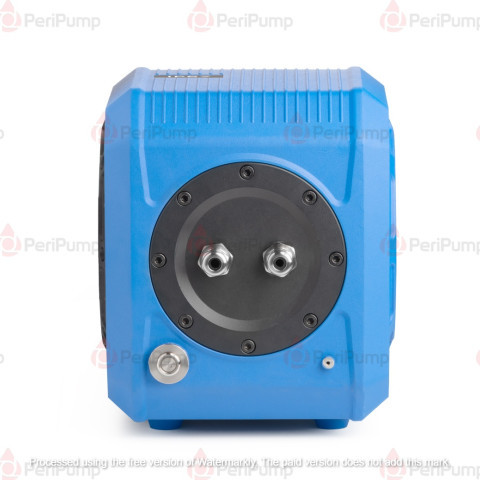

The HP peristaltic process pump is ideal for industrial applications.
The HP process peristaltic pump is ideal for continuous dosing applications, as well as for accurate dosing. The pump has a compact design with an aluminium housing and is antistatic. The pump can be equipped with different pump heads, depending on the application. Whether you want to pump a liquid from A to B or dose an exact quantity into a container.
The peristaltic pump has low power consumption and is also quiet. All parameters are set via the touch panel and in the event of a sudden power failure, the user settings are saved thanks to a memory backup.
Properties of the HP process pump:
- Industrial applications
- Flow rate from 0.3 ml/min up to 28 l/min
- 3-year warranty
Geeignet zum pumpen von Flüssigkeit von A nach B:

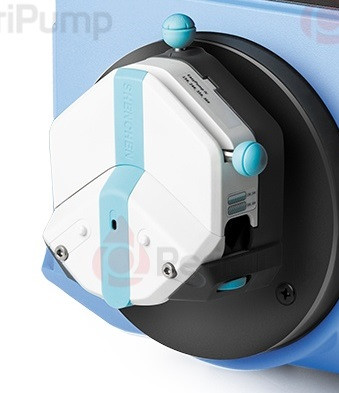

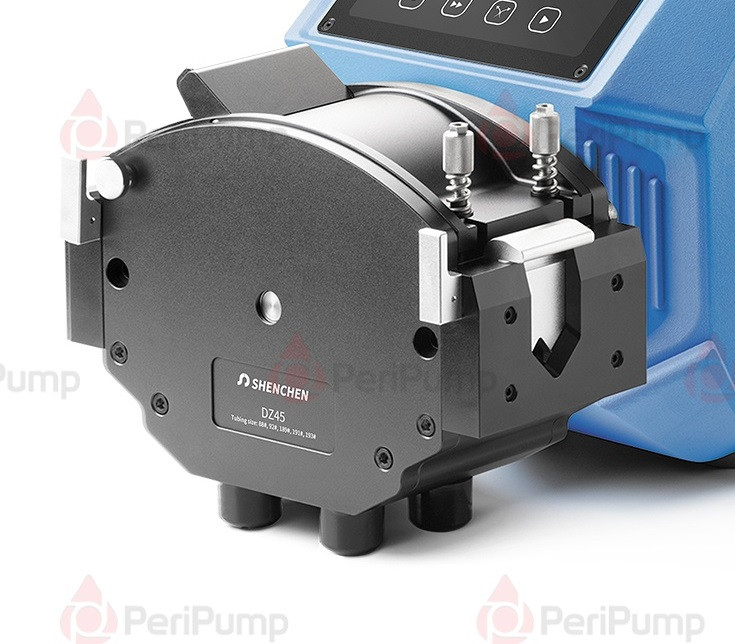

| DY45 (bis 28 l/min) | EasyPump (bis 3 l/min) |
Geeignet zum dosieren von Flüssigkeiten:

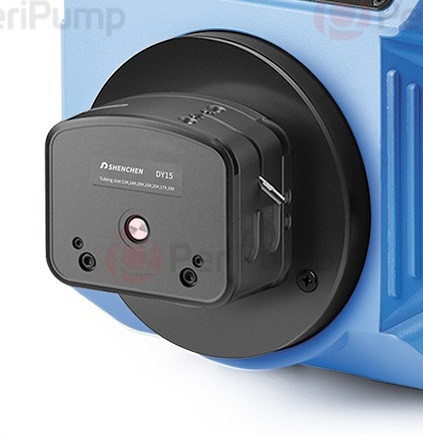

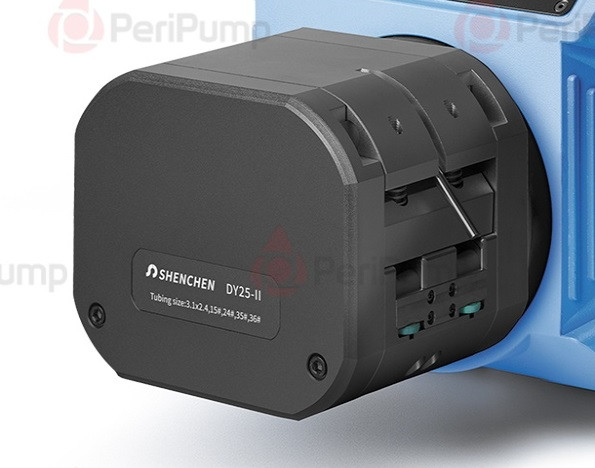

| DY25-II (bis 8'000 ml) | DY15 (bis 3'000 ml) |
| Process peristaltic pump HP | |
| Delivery rate (depending on pump head) | 0.3 - 28,000 ml/min |
| Speed range | 0.1 - 300 rpm |
| Timer function | 0.5 - 999 seconds |
| Operating pressure | max. 1.0 bar |
| Reverse suction | 0 - 360° |
| Umbient temperature | 0 - 40°C |
| Energy consumption | 300 W |
| Caster material
|
AISI 304
|
| Material housing
|
Aluminium |
| Weight | 21.5 kg |

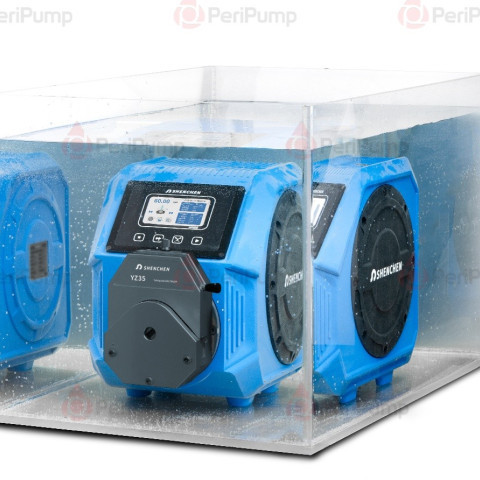

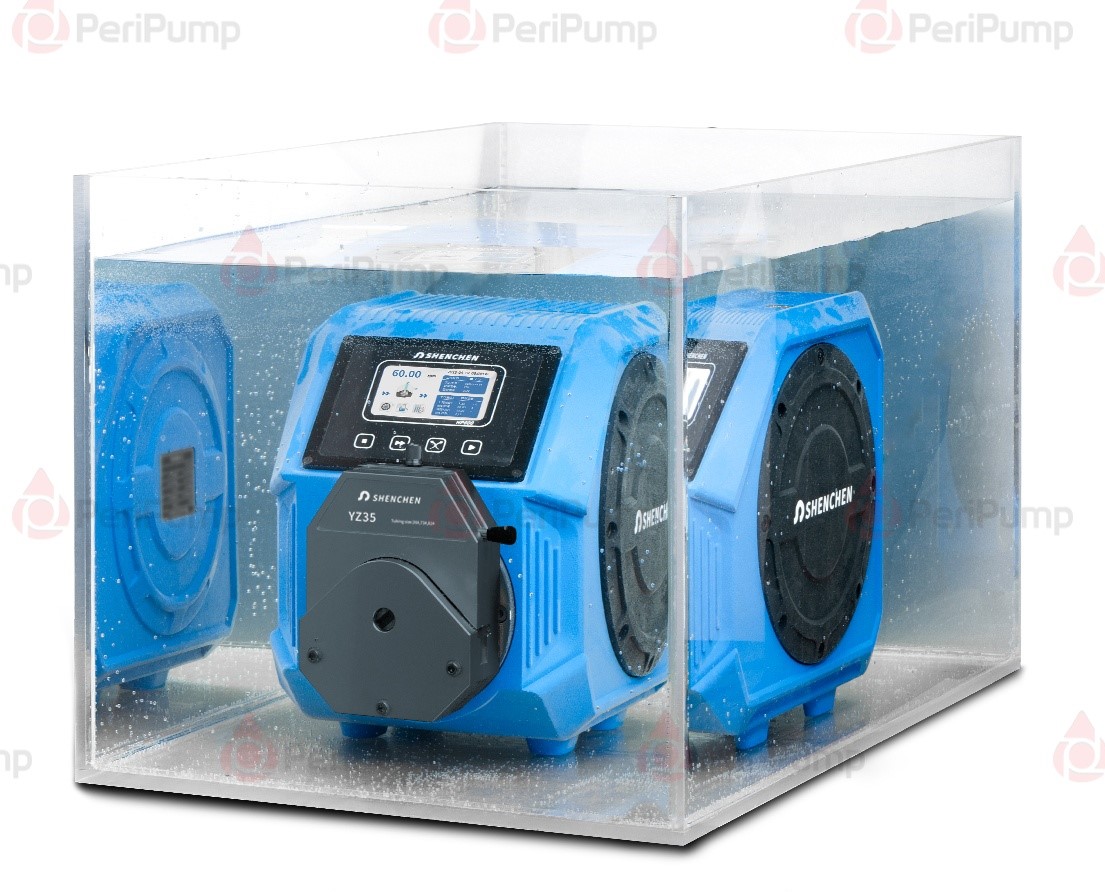

| IP protection factor | IP67 |
