The compact OEM peristaltic pump WPX1/WPX1C, with large motor selection.
The WPX1/WPX1C is a powerful, peristaltic pump with a large motor selection as well as many suitable hoses. The pump head is available in six colour options. Compact design and a palm-sized housing.
For liquids that need to be protected from UV light, a WPX1/WPX1C is available with a black UV-impermeable housing.

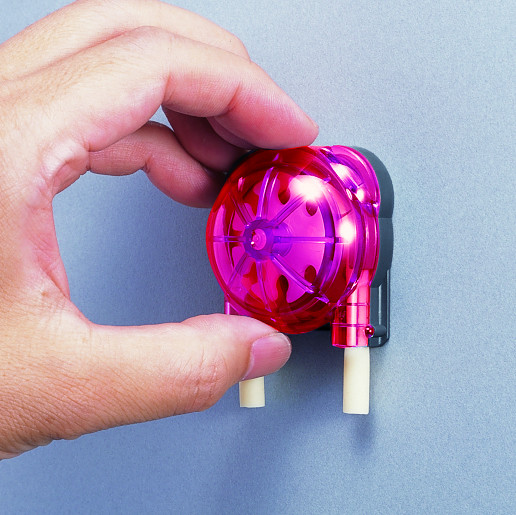

Since the housing (cover) can be mounted and removed manually without tools, maintenance work such as replacing hoses can be carried out quickly. With the WPX1C, the rotor and hose remain inside the housing when it is disconnected from the motor. This simplifies the change of the tube even more.
Features of the WPX1/WPX1C pump:
- Compact design
- Flow rate: 0 - 121 ml/min
- Available in 6 colour options
- Various motor types available
Free mounting configuration

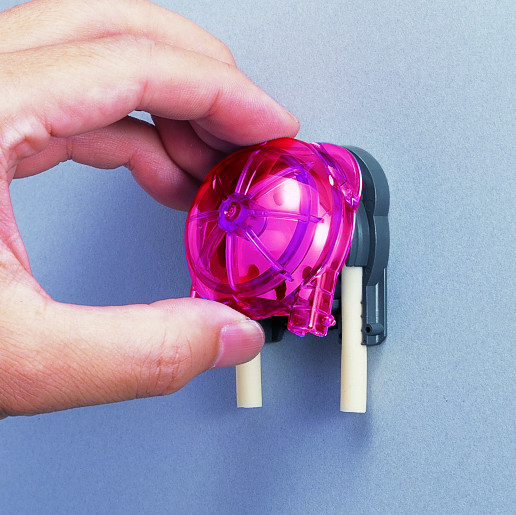

As the cap can be mounted and removed manually without using tools, maintenance such as tube replacement can be performed speedily.
WPX1 pump head installation mechanism:

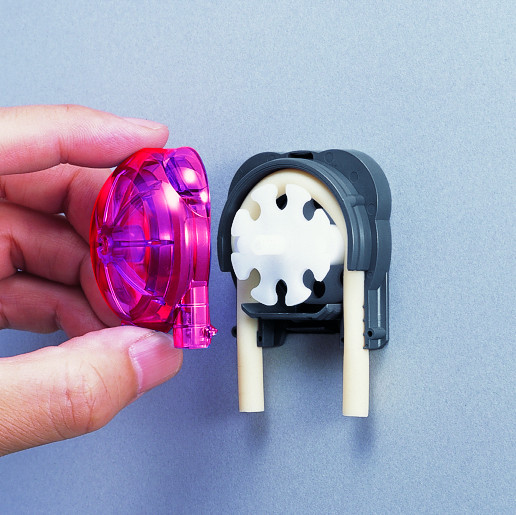

The rotor and tube are attached to the motor baseplate.

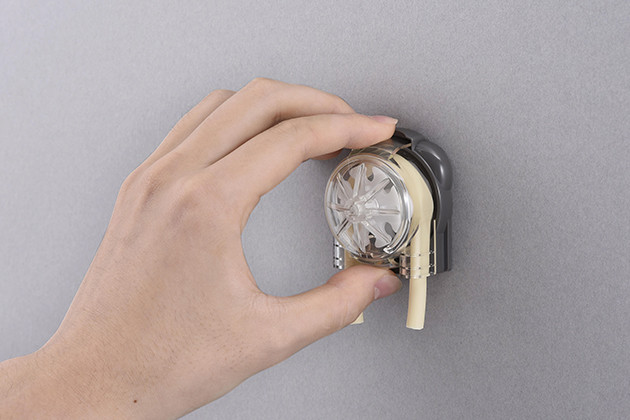

WPX1C pump head installation mechanism: Available from 2023.

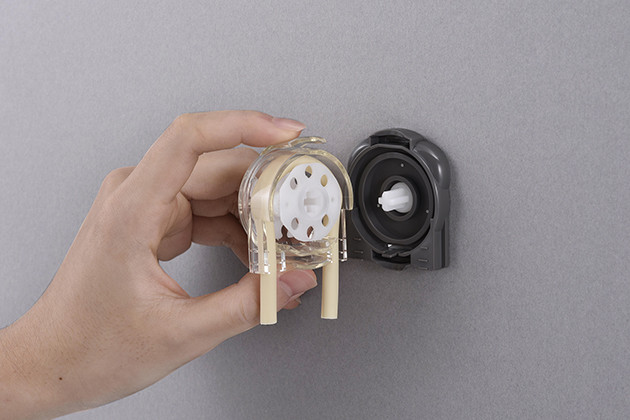

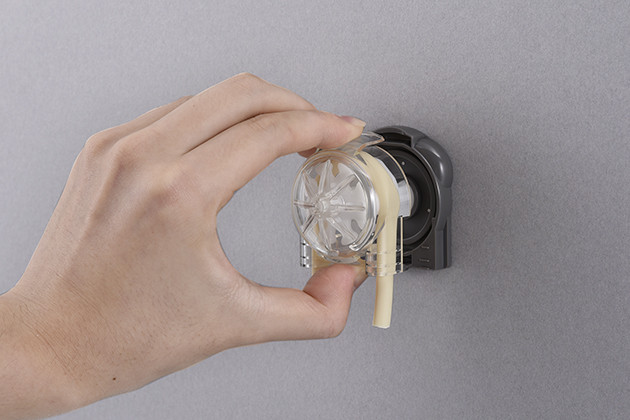

The rotor and the tube are fixed in the housing.
Optional panel

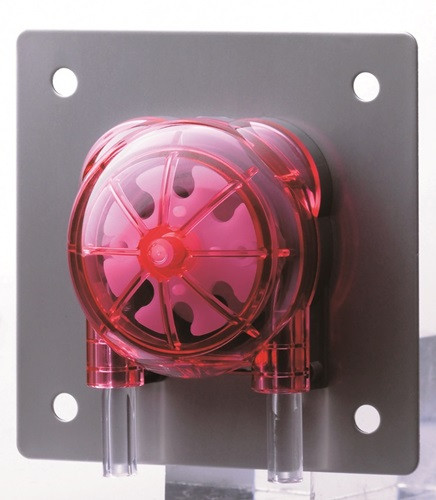

The panel is available as an option.
General specifications
| Peristaltic pump
|
WPX1
|
| Temperature product
|
5°- 50° C
|
| Environmental temperature
|
0°- 50° C
|
| Specified ambient humidity range
|
20% - 80% RH (with no condensation)
|
| Recommended installation height
|
2,0m max.
|
| Certifications & Approvals
|
 |
Brush motor DC
|
Brush motor 24V DC |
S |
M |
L |
IG |
ID |
IF |
|
RPM (load:100mNm) |
19,5 min-1 |
150 min-1 |
225 min-1 |
19 min-1 |
146 min-1 |
208 min-1 |
|
Operation voltage |
4V – 24V |
8V – 24V |
||||
|
Consumption current mA |
200 mA |
300 mA |
450 mA |
200 mA |
350 mA |
450 mA |
|
Continuously cycle |
max. 5 min |
✔ |
||||
|
Lifetime |
Approx 1'000 h |
Approx 3'000 h |
||||
|
Brush motor 12V DC |
DS |
DM |
JG |
JD |
JF |
|
RPM (load:100mNm) |
18 min-1 |
140 min-1 |
16.2 min-1 |
145 min-1 |
209 min-1 |
|
Operation voltage |
3V - 12V |
6V - 12V |
|||
|
Consumption current mA |
300 mA |
600 mA |
300 mA |
650 mA |
810 mA |
|
Continuously cycle |
max. 5 min |
✔ |
|||
|
Lifetime |
Approx 1'000 h |
Approx 1'500 – 2'000 h |
|||
Brushless motor DC
| Motor code
|
PM |
PD |
| Configuration
|
1:64 |
1:42 |
| Operation Voltage
|
16V - 24V DC |
16V – 24V DC |
| Pump speed (rpm)
|
50 – 70rpm (16V - 24V 100mNm Load) |
75 – 117rpm (16V – 24V 100mNm Load) |
| Current
|
Less than 300 mA |
Less than 400 mA |
| Rotation | Clockwise | |
| Life of Motor
|
5’000hr – Not a guaranteed value |
|
Hybrid stepper motor
| Motor code
|
FB |
FA |
| Configuration
|
1:64 |
1:8 |
| Number of phases and motor type
|
2 phase / BI polar system |
|
| Rated Voltage
|
1,92 V |
|
| Rated Current
|
0,8 A/Phase |
|
| Pump speed (rpm)
|
0 to 20rpm |
20 to 150rpm |
| Life
|
5’000hr – Not a guaranteed value |
|
Tube material and sizes
| Tube inner diameter
|
Ø 1.6mm 1/16 |
Ø 2.4mm 3/32 |
Ø 3.2mm 1/8 |
Ø 4.8mm 3/16 |
|
| Tube type
|
Code |
|
|||
| TYGON 3350/3355
|
S |
- |
✔ |
✔ |
✔ |
| TYGON 2001
|
U |
- |
- |
✔ |
- |
| TYGON E-LFL
|
EL |
- |
- |
✔ |
✔ |
| NORPRENE A-60-F
|
NF |
✔ |
✔ |
✔ |
✔ |
| PHARMED BPT
|
P |
✔ |
✔ |
✔ |
✔ |
| NORPRENE A-60-G
|
N |
- |
- |
✔ |
✔ |
| FLURAN F-5500-A
|
F |
- |
- |
✔ |
✔ |
| TYGOPRENE XL-60
|
XL |
- |
- |
✔ |
- |
| W TUBE
|
W |
- |
- |
✔ |
✔ |
Flow rate (water)
| Tube inner diameter
|
Ø 1.6mm 1/16 |
Ø 2.4mm 3/32 |
Ø 3.2mm 1/8 |
Ø 4.8mm 3/16 |
||||
| Number of rollers
|
2 |
4 |
2 |
4 |
2 |
4 |
2 |
4 |
| Flow amount per rotation
|
0,17 ml |
0,15 ml |
0,35 ml |
0,3 ml |
0,6 ml |
0,5 ml |
1,2 ml |
0,9 ml |
Color selection
Number of rollers

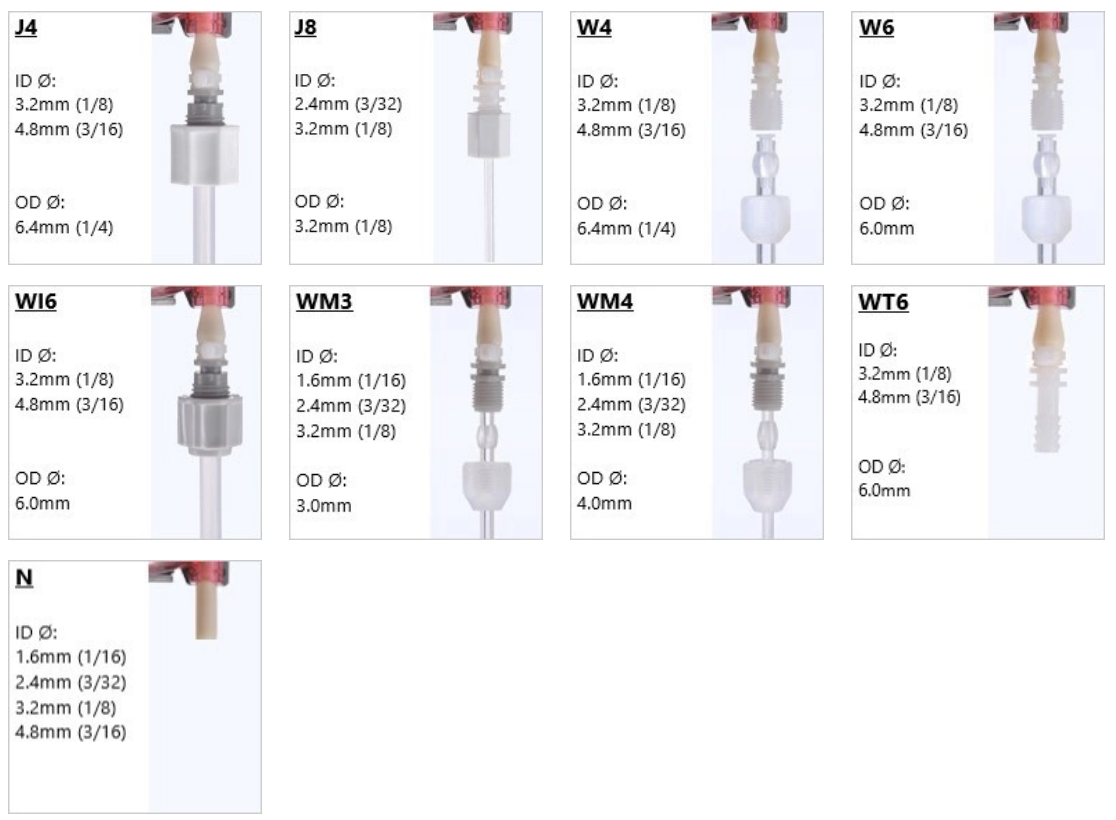

Tube fitting type
