The most versatile OEM peristaltic pump in the Welco range
The WP1000 OEM peristaltic pump is suitable, for example, for laboratory equipment, washing machines or dishwashers, as well as for the printing industry and the food industry. Even after assembly, the pump housing alone can be freely adjusted by an angle of 90°. This increases the flexibility of the design. The WP1000 is available in six colour variants.
The WP1000 OEM built-in pump, a benchmark for WELCO's squeeze peristaltic pumps, is designed for functional elegance and performance. And also impresses with its tool-free installation.
For UV-sensitive liquids, the WP1000 is available with a black housing.
Features of the WP1000 pump:
- Flow rate: 0 - 303 ml/min.
- Designed for continuous tubing.
- Available in 6 colour options
Free mounting configuration

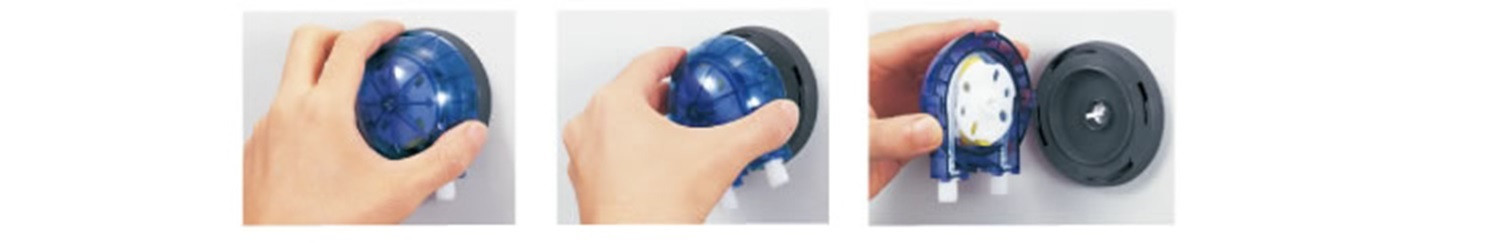

A “handy mounting mechanism”, which applies a bayonet configuration, is used in the base. As the cassette can be mounted and removed manually without using tools, maintenance such as tube replacement can also be performed speedily.

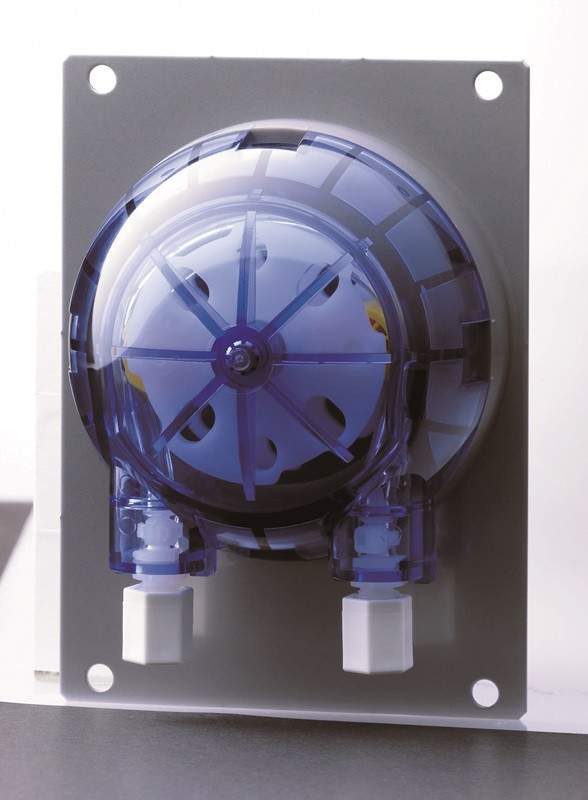

Optional panel
The panel is available as an option.
Technical data
| Peristaltic pump
|
WP1000
|
| Liquid temperature range
|
5°- 50° C
|
| Specified environment temperature range
|
0°- 50° C
|
| Specified ambient humidity range
|
20% - 80% (with no condensation)
|
| Recommended installation height
|
2,0 m max.
|
| Certifications & Approvals
|
 |
Brush motor
| Motor code
|
S |
M |
L |
IG |
ID |
IF |
| Rated voltage
|
24V DC |
|||||
| RPM (load: 100mNm)
|
19,5 |
150 |
225 |
19 |
146 |
208 |
| Operation Voltage
|
4V – 24V |
8V – 24V |
||||
| Consumption current mA
|
< 200 |
< 300 |
< 450 |
< 200 |
< 350 |
< 450 |
| Continuously cycle
|
Max. 5 min |
✔ |
||||
| Direction of rotation
|
CW and CCW |
CW or CCW |
||||
| Lifetime
|
Approx. 1'000 h |
Approx. 3'000 h |
||||
| Motor code
|
DS |
DM |
JG |
JD |
JF |
| Rated voltage
|
12V DC |
||||
| RPM (load: 100mNm)
|
18 |
140 |
16.2 |
145 |
209 |
| Operation Voltage
|
3V – 12V |
6V – 12V |
|||
| Consumption current mA
|
< 300 |
< 600 |
< 300 |
< 650 |
< 810 |
| Continuously cycle
|
Max. 5 min |
✔ |
|||
| Direction of rotation
|
CW and CCW |
CW or CCW |
|||
| Lifetime
|
Approx. 1'000 h |
Approx. 1'500 – 2'000 h |
|||
Brushless motor
| Motor code
|
PM |
PD |
| Gear ratio
|
1:64 |
1:42 |
| Operation Voltage
|
16 V - 24 V DC |
16 V - 24 V DC |
| Pump speed
|
47 – 70rpm (16 V - 24 V DC) |
78 – 117rpm (16 V - 24 V DC) |
| Current
|
< 400 mA |
< 600 mA |
| Direction of rotation | clockwise | |
| Life of motor
|
approx. 5'000 h - Not a guaranteed value |
|
Hybrid stepper motor
| Motor code
|
FB |
BA |
GA |
GD |
| Gear ratio
|
1:64 |
1:8 |
1:8 |
1:42 |
| Number of phases and motor type
|
2 phase / BI polar system |
2 phase / UNI polar system |
||
| Rated Voltage
|
1,92 V |
1,76 V |
3,5 V |
|
| Rated Current
|
0,8 A/Phase |
1,1 A/Phase |
1,2 A/Phase |
|
| Pump speed (rpm)
|
0 – 20rpm |
20 – 150rpm |
0 – 29rpm |
|
| Life
|
Benchmark: 5'000 hr |
|||
Tube material and sizes
| Tube inner diameter
|
Ø 1,6mm |
Ø 2,4mm |
Ø 3,2mm |
Ø 4,0mm |
|
| Tube Wall thickness
|
|
1,6 mm
|
1,6 mm
|
1,6 mm
|
1,6 mm
|
| Tube type
|
Code |
1/16
|
3/32
|
1/8
|
4
|
| TYGON 3350/3355
|
S |
- |
✔ |
✔ |
- |
| TYGON 2001
|
U |
- |
- |
✔ |
- |
| TYGON E-LFL
|
EL |
- |
- |
✔ |
- |
| NORPRENE A-60-F
|
NF |
✔ |
✔ |
✔ |
✔ |
| PHARMED BPT
|
P |
✔ |
✔ |
✔ |
✔ |
| NORPRENE A-60-G
|
N |
- |
- |
✔ |
- |
| FLURAN F-5500-A
|
F |
- |
- |
✔ |
- |
| TYGOPRENE XL-60
|
XL |
- |
- |
✔ |
- |
| W TUBE
|
W |
- |
- |
✔ |
✔ |
Flow amount benchmark
| Tube inner diameter
|
Ø 1,6mm 1/16 |
Ø 2,4mm 3/32 |
Ø 3,2mm 1/8 |
Ø 4,0mm 4 |
|||
| Number of rollers
|
4 |
2 |
4 |
2 |
4 |
2 |
4 |
| Flow amount per rotation
|
0,2 ml |
0,5 ml |
0,45 ml |
0,9 ml |
0,8 ml |
1,45 ml |
1,2 ml |
Color variation
FNumber of rollersF

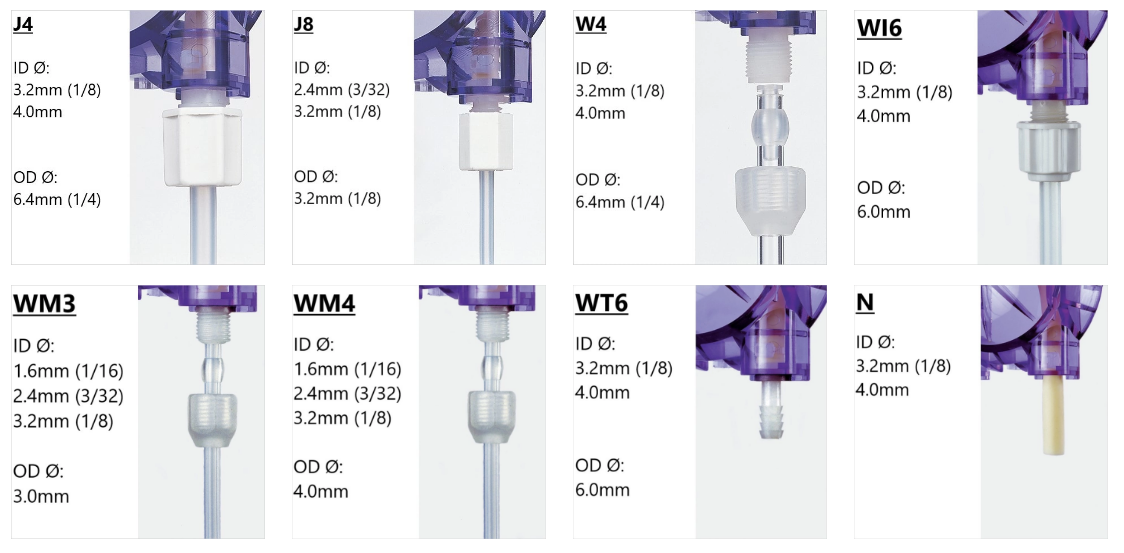

Tube fitting type
