WP1100 Panel mount pump OEM Peristaltic pumps

The OEM WP1100 peristaltic pump with integrated panel for direct mounting.

The OEM WP1100 peristaltic pump, a landmark of WELCO peristaltic pumps, is designed for functional elegance and performance. And also impresses with its tool-free installation.

The WP1100 OEM built-in pump supports flow rates of up to 627 ml per minute, depending on the motor and hose diameter. The hose squeeze pump is available in 5 colour variants.

In response to customer requests, Welco has expanded its product portfolio with the WP1100 model, which retains the same basic design as the WP1000 series but is compatible with a 1/4" (ø6.4 mm) internal hose diameter. The WP1100 supports flow rates of up to 627 ml per minute and the use of different types of tubing materials.
(The dimensions and shape differ from those of the WP1000).

Features of the WP1100 pump:

- Flow rate: 0 - 627 ml/min
- designed for continuous tubing
- widest choice of motors


Free mounting configuration

A “handy mounting mechanism”, which applies a bayonet configuration, is used in the base. As the cassette can be mounted and removed manually without using tools, maintenance such as tube replacement can also be performed speedily.


New mechanism for "Cassette Lock Function"

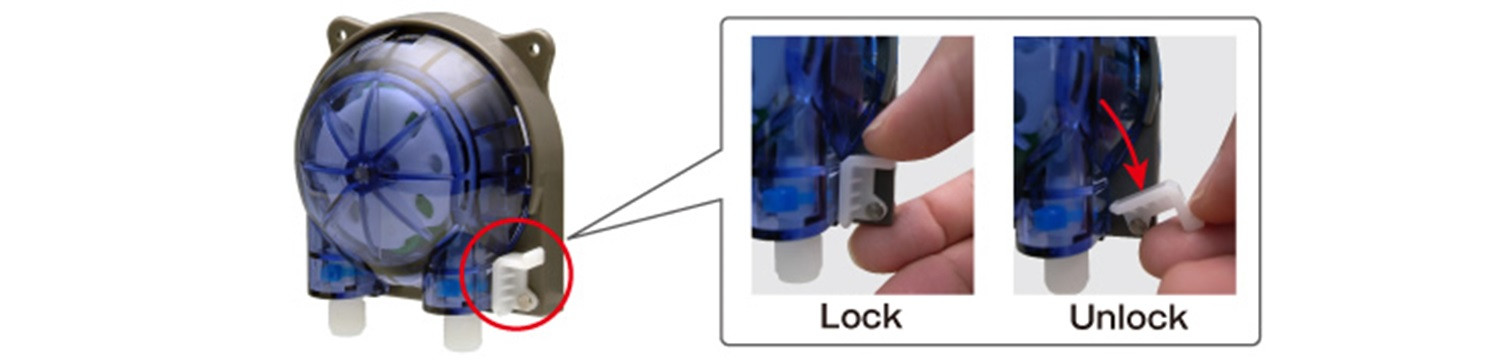

We have added parts, to avoid falling away of the cassette from the pump body, when operating the pump to both directions is required. You can unlock/lock the cassette at your finger tips. Optionallly available.


General specifications

Peristaltic pump
WP1100
Liquid temperature range
5°- 50° C (41°- 122° F)
Specified environment temperature range
0°- 50° C (32° - 122° F)
Specified ambient humidity range
20% - 80% (with no condensation)
Recommended installation height
2.0 m max.
Certifications & Approvals

Brush motor

Motor code

S

M

L

IG

ID

IF

Rated voltage

24V DC

RPM (load: 100mNm)

19,5

150

225

19

146

208

Operation Voltage

4V – 24V

8V – 24V

Consumption current mA

< 200

< 300

< 450

< 200

< 350

< 450

Continuously cycle

Max. 5 min

Direction of rotation

CW and CCW

CW or CCW

Lifetime

Approx. 1'000 h

Approx. 3'000 h

Motor code

DS

DM

JG

JD

JF

Rated voltage

12V DC

RPM (load: 100mNm)

18

140

16.2

145

209

Operation Voltage

3V – 12V

6V – 12V

Consumption current mA

< 300

< 600

< 300

< 650

< 810

Continuously cycle

Max. 5 min

Direction of rotation

CW and CCW

CW or CCW

Lifetime

Approx. 1'000 h

Approx. 1'500 – 2'000 h


Brushless motor

Motor code

PM

PD

PL

Gear ratio

1:64

1:42

1:8

Operation Voltage

16V - 24V DC

16V - 24V DC

16V DC

Pump Rev.

50 – 70rpm (16V - 24V DC)

75 – 117rpm (16V - 24V DC)

 approx. 348rpm

Current

< 300 mA

< 400 mA

< 700 mA

Direction of rotation pump
clockwise
Lifetime motor

approx. 5'000 h


Hybrid stepper motor

Motor code

FB

BA

GA

GD

Configuration

1:64

1:8

1:8

1:42

Number of phases and motor type

2 phase / BI polar system

2 phase / UNI polar system

Rated Voltage

1,92 V

1,76 V

3,5 V

Rated Current

0,8 A/Phase

1,1 A/Phase

1,2 A/Phase

Pump Rev.

0 – 20rpm

20 – 150rpm

0 – 29rpm

Life

Benchmark: 5'000hr


Single-phase Synchronous motor AC

Motor code

EE

EF

Operation Voltage

230V AC (220 - 240V)

110V AC (110 - 120V)

Hertz

50 Hz

50/60 Hz

Input

8 W

Pump Rev.

20rpm

18/22rpm

Life

Benchmark: 2'000hr

Drive Mode

5min (DUTY30%) – Operating continuously is not possible

Pump tube type and tube sizes

Tube inner diameter

Ø 4,8mm

Ø 6,4mm

Tube Wall thickness

1,6 mm
1,6 mm
Tube type
Code
3/16
1/4
TYGON 3350/3355

S

TYGON 2001

U

TYGON E-LFL

EL

-

NORPRENE A-60-F

NF

PHARMED BPT

P

NORPRENE A-60-G

N

FLURAN F-5500-A

F

W TUBE

W


Flow amount benchmark

Tube inner diameter

Ø4.8mm

Ø6.4mm

Number of rollers

2

2

Flow amount per rotation

1.95 ml

3.0 ml

Color variation

blue
green
clear
red
yellow

Number of rollers

2 rollers
4 rollers

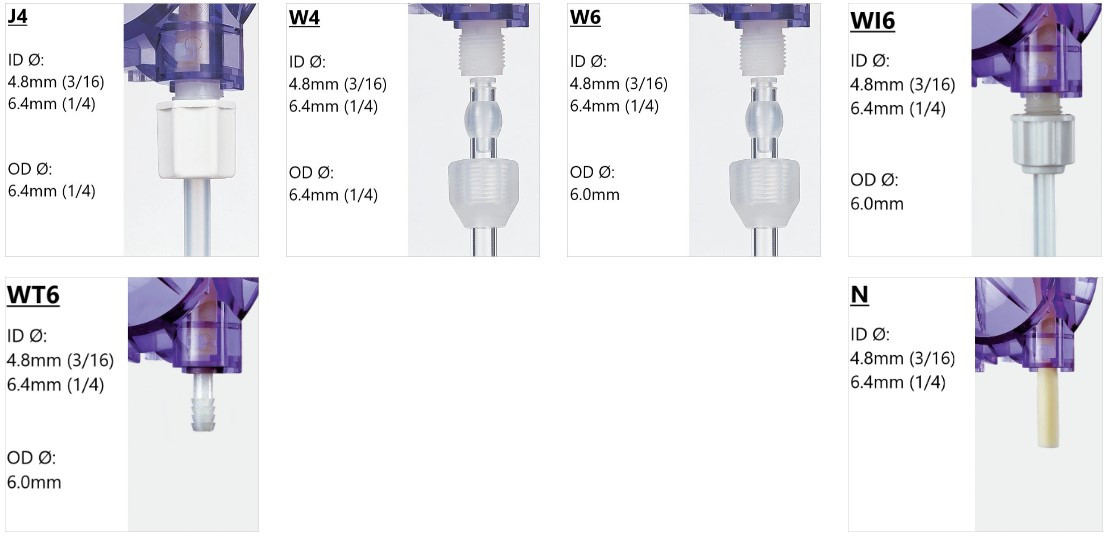

Schlauchanschlussstücke
